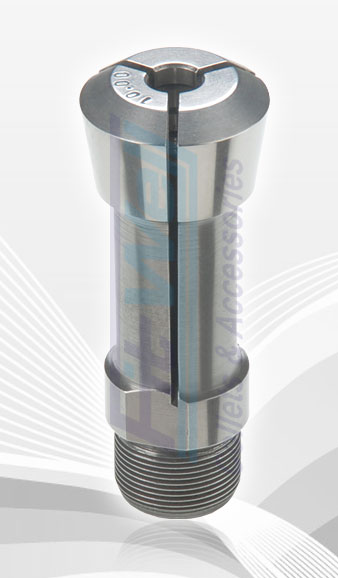

3/4'' Turning Collet
Leveraging on our long experience in the industry, we offer quality 3/4' Turning Collet for various industrial usages. Our industrial collets are made with qualitative raw material. These industrial collets are appreciated for their features including wear resistance, high hardness and best functioning. We offer our 3/4' Turning Collet in various models.
Permissible Concentricity Chart is : 6238 - 1971
| CHARTS FOR DIMENSIONS |
| A | B | C | D | L | L1 | ∠° Angle |
| 36.00 |
25.5 x 20 |
– |
– |
93.00 |
– |
8° |
| ROUND BORE |
Capacity (Bore Size)
in mm | Test Lenght L in mm | Permissible Concentricity Error(T.I.R.) |
| above 1 to 1.6 |
6 |
0.010 |
| above 1.6 to 3 |
10 |
0.010 |
| above 3 to 6 |
16 |
0.010 |
| above 6 to 10 |
25 |
0.010 |
| above 10 to 15 |
40 |
0.015 |
| above 15 to 19 |
50 |
0.015 |
Round
